16A (5-Pin) to 13A 2 Gang RCD Weatherproof Socket - 2.5mm² Cable
16A (5-Pin) to 13A 2 Gang RCD Weatherproof Socket - 2.5mm² Cable
Built in-house for maximum durability, all our 16A 5-pin RCD weatherproof extension leads are made to BS 7909 and supplied fully safety tested.
16A 5-pin (3P+N+E) 415V plug to IP66 outdoor weatherproof 2-gang RCD socket with tough and flexible 2.5mm² rubber cable. Suitable for temporary or permanent outdoor use if wall mounted.
Professionally configured for safe step-down applications from industrial three-phase supplies.
- Safety Protection: Integrated RCD instantly cuts power to protect users in the event of an electrical fault.
- Type A Latching RCD: Heavy-duty commercial design that automatically returns to its original state when power is resumed.
Choose between an IP44 splash-proof or IP67 waterproof plug.
Quantity Discounts: Applied automatically when adding multiple items of the same length to your basket:
- Buy 3 to 5 units and save 5%
- Buy 6 or more units and save 10%
For more product, lead times and returns information please see tabbed areas below.
Price Includes VAT
£0.00
From £53.60
The details
- Product Information
Assembled in-house to the highest standards, these heavy-duty extension leads are specifically engineered for commercial catering, marquees, workshops and temporary site power distribution where personal safety protection is critical.

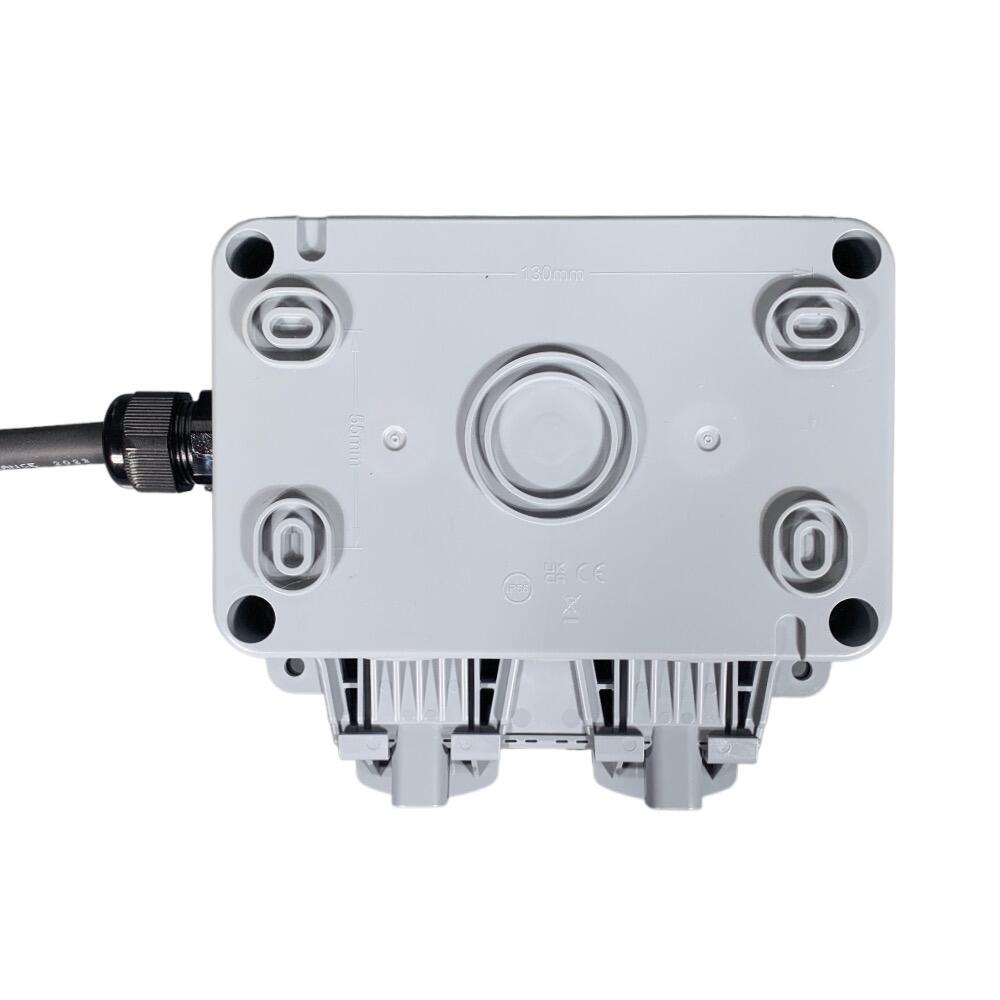

Integrated RCD Safety: Features a British General (BG) Nexus Storm IP66 twin socket housing with a built-in Type A Latching RCD. This commercial-grade safety device protects operators by instantly cutting off power if an electrical fault is detected and automatically returns to its original state when supply power is reset or resumed.
Safe Single-Phase Step Down: Professionally configured for safe step-down applications from industrial three-phase supplies. Wired strictly to the L1 terminal, while the L2 and L3 lines are completely isolated to prevent any cross-phasing issues if the Neutral (N) becomes disconnected on-site.
Premium Dual Power: Allows you to safely connect and run two appliances simultaneously up to a total maximum combined load of 13A. The rugged dustproof and weather-resistant IP66 enclosure is paired with a durable PCE 16A 5-pin (3P+N+E) 415V plug, available in IP44 splash-proof or IP67 fully waterproof options.
Heavy-Duty 2.5mm² Cable: Built using genuine Nexans Titanex 2.5mm² 3-Core H07RN-F rubber cable. This industrial-grade cable core significantly minimises voltage drop over long distances and remains highly flexible while resisting extreme temperatures, chemicals and mechanical wear—making it ideal for laying directly on the ground in high-traffic public event areas.
Fully Tested & Compliance Ready: All cores are clean-terminated with wire ferrules, fully Portable Appliance Tested (PAT) and conform strictly to BS 7909 on-site safety regulations. Includes two 80mm clear heatshrink sleeves for easy asset tracking and ID labelling.
- Product Specification
Specification Details Cable Nexans Titanex 2.5mm² 3 Core H07RN-F Rubber IP44 Plug 415V 16A 5Pin (3P+N+E) Red Plug PCE 015-6 IP67 Plug 415V 16A 5Pin (3P+N+E) Red Plug PCE 0152-6 Socket BG WP22RCD Nexus Storm IP66 2-Gang 13A Twin RCD Switched Socket Wiring Configuration Step-down configuration wired to L1 terminal. L2 and L3 isolated to prevent cross-phasing issues if Neutral (N) is disconnected. Terminations Ferruled Voltage Conversion 415V Input to 220-240V Output Max Current 13A Total Maximum Combined Load Test Standard Portable Appliance Test (PAT) / BS 7909 Compliant Asset Marking 2 x 80mm Clear Heatshrink Sleeves Included Product Code AH16513RDO / AH165W13RDO - Lead & Dispatch Times
Please note that these heavy-duty 16A 5-pin to 13A 2-gang RCD weatherproof socket leads are built-to-order and are not kept as pre-assembled stock items. We assemble each item when we receive your order.
Urgent Orders: If your requirements are urgent or time-critical, please contact us directly before placing your order to confirm our current workshop capacity.
Assembly Lead Times (By Quantity)
The following timeframes are estimates based on our standard workshop volume:
Order Quantity Estimated Production Time 1 to 3 Units Dispatched on date shown in red header box at the top of the page. 4 to 10 Units Assembled and ready to dispatch 1-3 working days after date shown in red header box. 11 to 30 Units Assembled and ready to dispatch 2-5 working days after date shown in red header box. 30+ Units Assembled and ready to dispatch 3-7 working days after date shown in red header box. - Returns
Because these 16A 5-pin to 13A 2-gang RCD weatherproof socket leads are built-to-order, no returns, refunds, or exchanges are permitted once production has commenced.
Please ensure that the length, voltage and configuration are suitable for your specific application before making a purchase.
Need Help? If you require any further technical assistance or compatibility advice, please message us prior to purchasing to avoid incorrect orders.
Frequently Asked Questions
Can I change or cancel my order after payment?
Cancellations or changes to cable length and configuration are only possible if our workshop has not yet commenced production on your order. Please contact our support team if you need to request a modification.
What happens if my custom cable arrives faulty or damaged?
Every lead is fully safety-tested in our workshop before dispatch. However, if your extension lead arrives damaged in transit we will arrange a swift repair or replacement under our product guarantee. Please report any issues to us on the day of delivery.
How do I make sure I am ordering the correct configuration?
This specific lead features a 16A 5-pin (3P+N+E) 415V plug and converts to a 13A 2-gang RCD weatherproof socket with a premium 2.5mm² cable core. If you are unsure whether your power source or equipment matches these exact specifications, please take a clear photograph of your plugs/sockets and send them to us for verification before checkout.
DISPATCH AND DELIVERY INFORMATION
We will deliver your Goods in accordance with the availability shown on the product page.
For Goods shown as in-stock they will be dispatched on the next available dispatch date indicated in the red header box displayed at the top of every page on our Site.
For goods not in stock and shown as available in a number of working days they will usually be dispatched within that period. If for whatever reason we cannot source items which are not in stock then we will advise you of this by email as soon as possible.
Delivery will be completed when we deliver the Goods to the address you have given to us.
Full full delivery information please see our TERMS AND CONDITIONS.
