32A to 13A 2 Gang Weatherproof Socket with 32A Socket -6mm² Cable

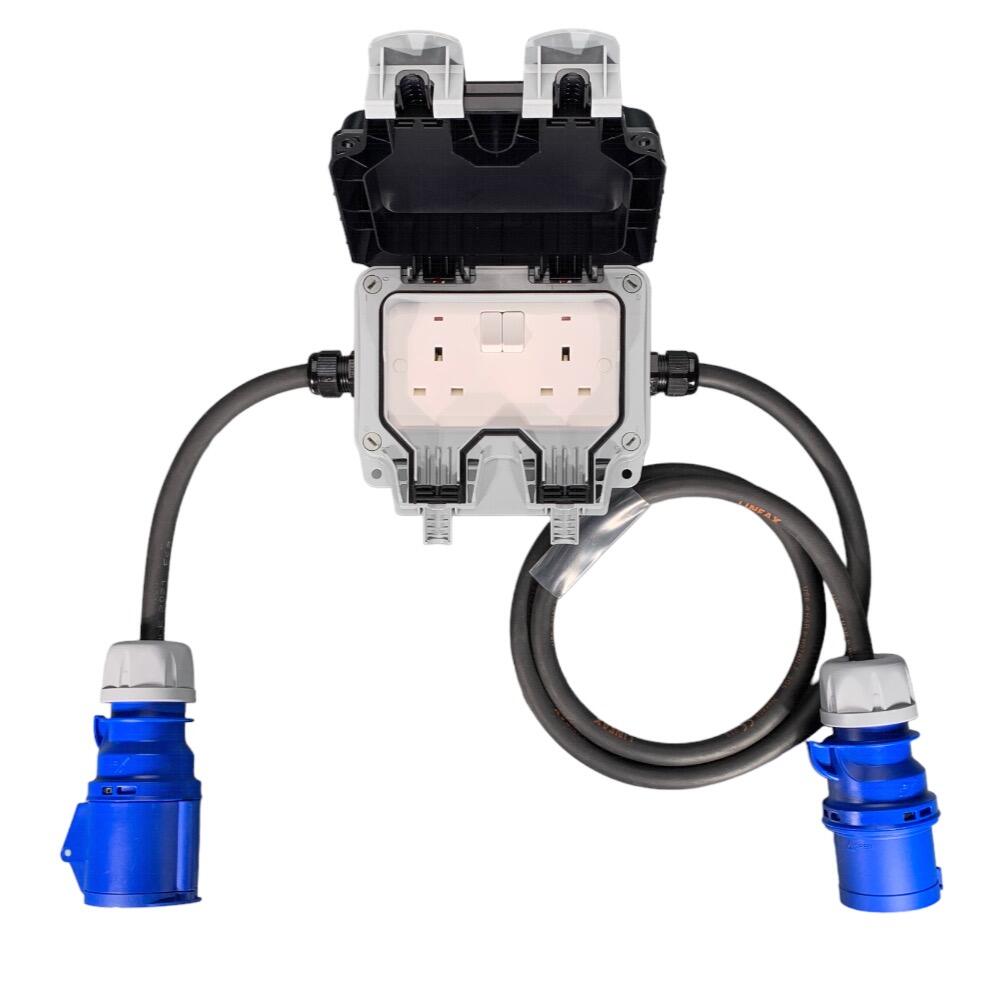

Heavy-duty 32A 3-pin plug to 32A coupler inline pass-through extension lead featuring a 13A twin socket with an open IP66 weatherproof cover.

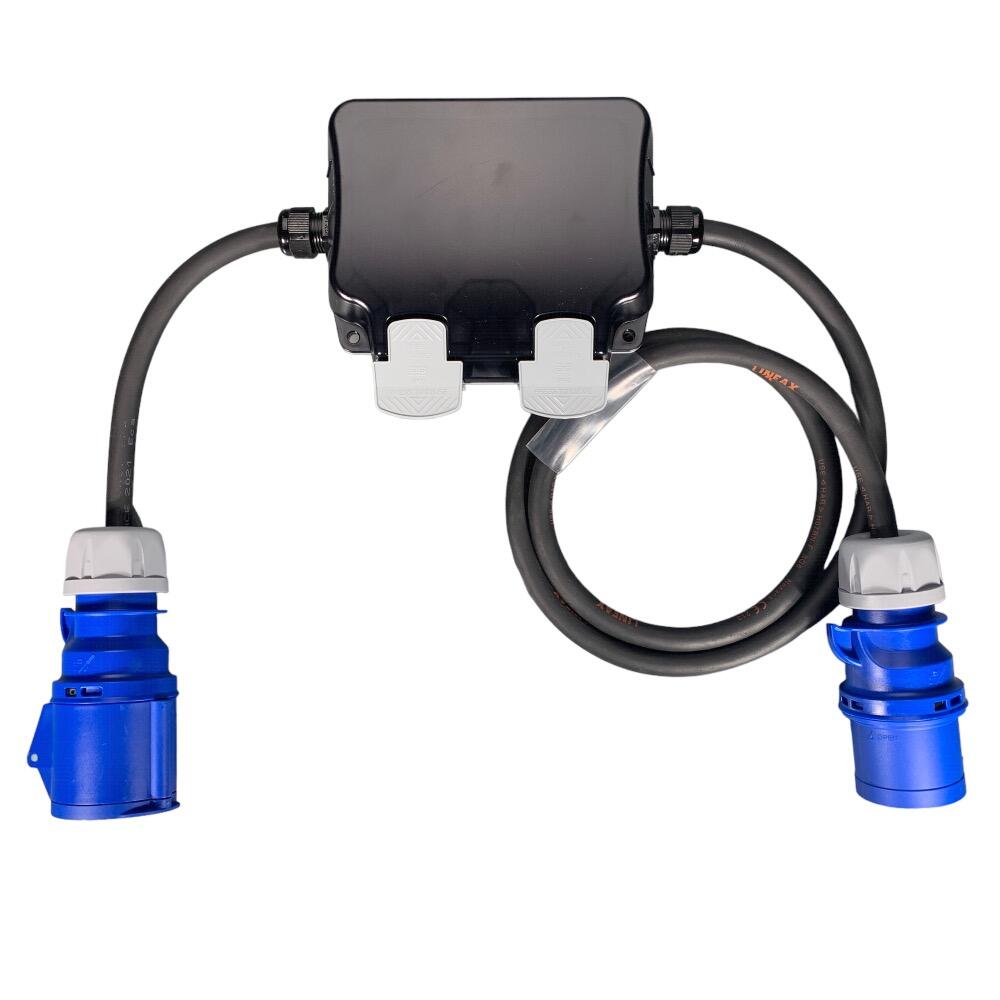

Full view of the 32A inline pass-through extension lead loop with the twin 13A outdoor weatherproof socket lid closed.
Front view of the BG Nexus Storm IP66-rated 2-gang outdoor twin socket with dual neon indicator lights.

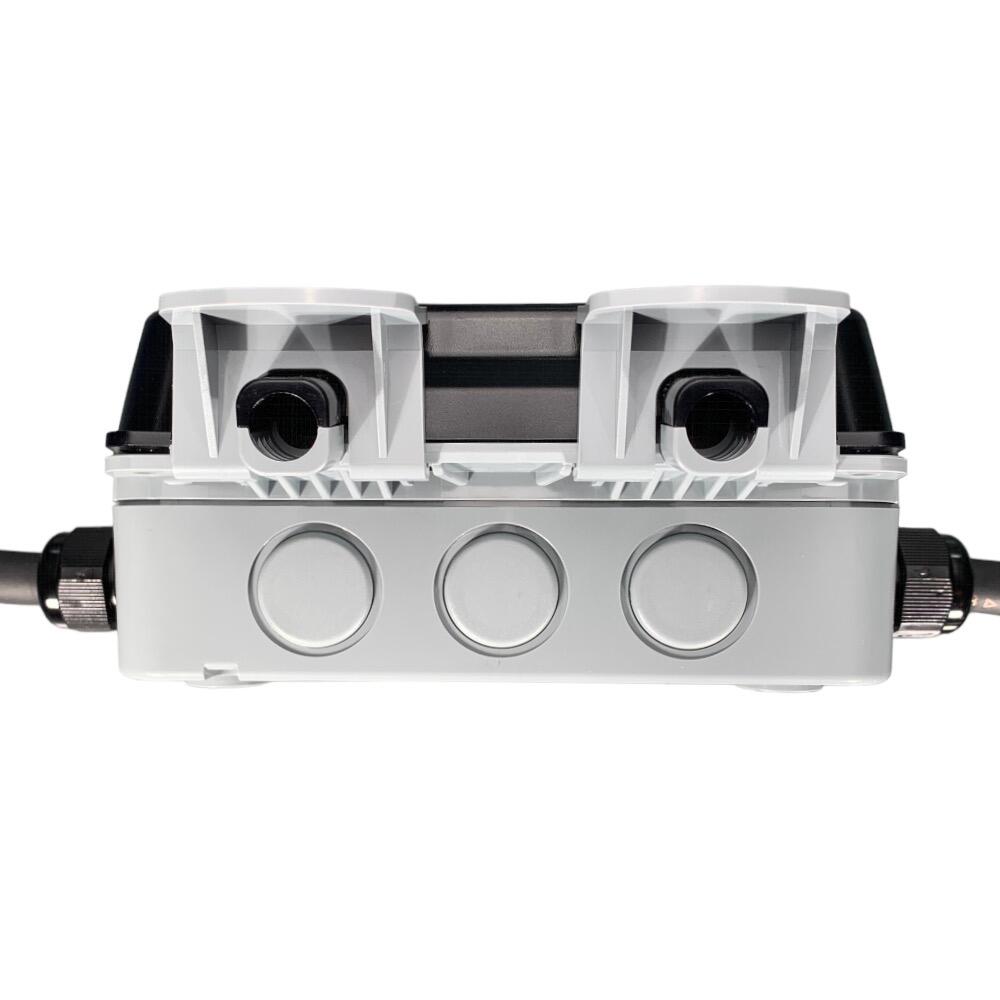

Close-up of the BG Nexus Storm double outdoor socket box with the protective cover closed.

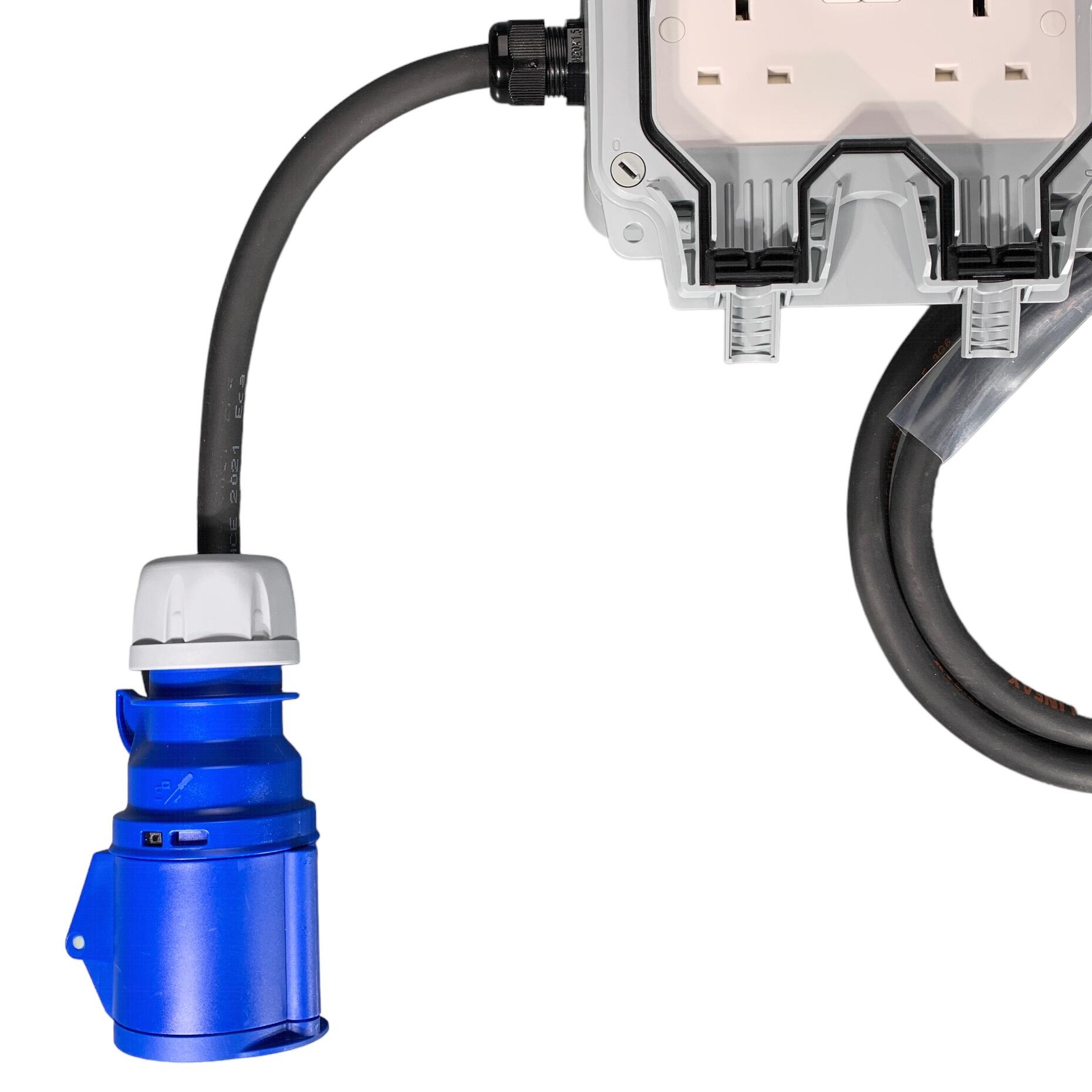

Close-up of the heavy-duty cable entry point and sealing gland on the base of the IP66 twin outdoor socket box.
Close-up view of the heavy-duty blue PCE 32A 3-pin (2P+E) industrial female coupler socket connector body.
Heavy-duty 32A 3-pin plug to 32A coupler inline pass-through extension lead featuring a 13A twin socket with an open IP66 weatherproof cover.
Full view of the 32A inline pass-through extension lead loop with the twin 13A outdoor weatherproof socket lid closed.
Front view of the BG Nexus Storm IP66-rated 2-gang outdoor twin socket with dual neon indicator lights.
Close-up of the BG Nexus Storm double outdoor socket box with the protective cover closed.
Close-up of the heavy-duty cable entry point and sealing gland on the base of the IP66 twin outdoor socket box.
Close-up view of the heavy-duty blue PCE 32A 3-pin (2P+E) industrial female coupler socket connector body.

32A to 13A 2 Gang Weatherproof Socket with 32A Socket -6mm² Cable

Built to BS7909 standards and fully tested, these 32A 2-gang IP66 weatherproof extension leads feature an integrated 32A pass-through socket often used in catering and markets. Built with premium 6mm² rubber cable, they offer robust and reliable power distribution.

Available configurations include:

  • Type: Equal (both cables same length) or Staggered (outgoing cable 30cm).
  • Cable Length: Available in 1m to 5m (Equal) or 1m to 10m (Staggered) options.
  • Connector: IP44 (Splash-proof) or IP67 (Waterproof) ratings.

Quantity Discounts - applied when you add multiple items of the same length into the basket.

  • Buy 3-5 for 5%
  • Buy 6+ for 10%

For more product, lead times and returns information please see tabbed areas below.

Price Includes VAT

£0.00
From £61.20
£0.00
From £61.20
Earn 0 reward points
Choose an option from the list above...
Choose an option from the list above...

In stock

Sorry! We're out of stock

The details

  • Product Information

    Assembled in-house to the highest standards, these heavy-duty inline pass-through extension leads are designed for commercial catering, festival stages, markets and temporary site installations.

    Key Features:

    • Premium Cable: Heavy-duty Nexans Titanex 6mm² 3-Core H07RN-F rubber cable for maximum flexibility, industrial-grade durability and high-capacity current draw.
    • Pass-Through Power: Fitted with an inline 32A 3-pin plug and connector set (available in IP44 or IP67 configurations), allowing a full 32A circuit to continue onwards downstream.
    • Weatherproof Socket: Outgoing spur drops into a British General (BG) Nexus Storm IP66 twin switched socket, providing robust dust and water jet protection for local 13A devices.
    • Ready for Use: Fully PAT tested and terminated with wire ferrules in compliance with BS 7909 safety standards. Includes 80mm clear heatshrink sleeves for identification.

    Note: The maximum output power for the 2-gang socket is 13A, whilst the continuous pass-through current capacity remains at 32A.

  • Product Specification
    SpecificationDetails
    CableNexans Titanex 6mm² 3 Core H07RN-F Rubber
    IP44 Plug & Socket230V 32A 3Pin 2P+E Blue PCE 213-6 Plug & 313-6 Coupler
    IP67 Plug & Socket230V 32A 3Pin 2P+E Blue PCE 2132-6 Plug & 3132-6 Coupler
    SocketBG WP22 Nexus Storm IP66 2-Gang 13A Neon Switched Socket
    TerminationsFerruled
    Voltage220-240V
    IP RatingIP66 (2-Gang Socket) / IP44 or IP67 (Plug & Connector Options)
    Max Current13A Socket Power / 32A Pass-Through Capacity
    Test StandardPortable Appliance Test (PAT) / BS 7909 Compliant
    Asset Marking2 x 80mm Clear Heatshrink Sleeves
    Product CodeAH3213DOL / AH32W13DOL
  • Lead & Dispatch Times

    These 32A to 13A 2 gang twin weatherproof pass-through socket leads are built-to-order upon receipt of your order.

    Urgent Orders: Please contact us before ordering to confirm workshop capacity if your requirements are time-critical.

    Assembly Lead Times (By Quantity)

    Order QuantityEstimated Production Time
    1 to 3 UnitsDispatched on date shown in red header box at the top of the page.
    4 to 10 UnitsAssembled and ready to dispatch 1-3 working days after date shown in red header box.
    11 to 30 UnitsAssembled and ready to dispatch 2-5 working days after date shown in red header box.
    31+ UnitsAssembled and ready to dispatch 3-7 working days after date shown in red header box.
  • Returns

    Because these 32A inline pass-through to 13A 2 gang weatherproof socket leads are built-to-order, no returns, refunds, or exchanges are permitted once production has commenced.

    Please ensure that the length, voltage and configuration are suitable for your specific application before making a purchase.

    Need Help? If you require any further technical assistance or compatibility advice, please message our support team prior to purchasing to avoid incorrect orders.

    Frequently Asked Questions

    Can I change or cancel my order after payment?
    Cancellations or changes to cable length and configuration are only possible if our workshop has not yet commenced production on your order. Please contact our support team immediately via email or phone if you need to request a modification to your order.

    What happens if my custom cable arrives faulty or damaged?
    Every lead is fully safety-tested in our workshop before dispatch. However, if your extension lead arrives damaged in transit we will arrange a replacement item under our product guarantee. Please report any issues to us on the day of delivery.

    How do I make sure I am ordering the correct configuration?
    This specific lead features an inline 32A 3-pin plug and coupler loop alongside a 13A 2-gang twin weatherproof socket with a premium 6mm² cable core. If you are unsure whether your power source or equipment matches these exact specifications, please take a clear photograph of your plugs/sockets and send them to us for verification before checkout.
