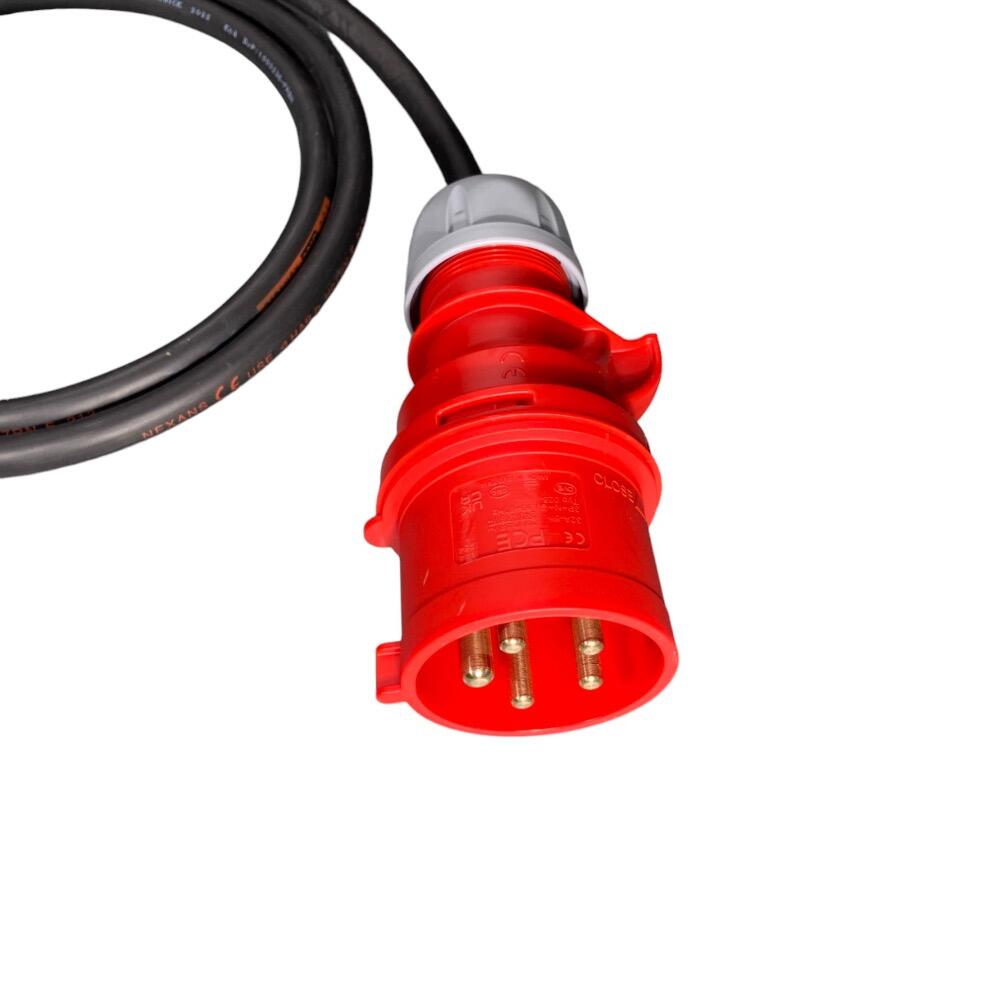

Commercial 415V 32A 5-pin 3P+N+E red industrial three-phase male plug (PCE 025-6 variant).
Technical dimensions diagram showing measurements, diameter and layout details for the PCE 32A 5-pin industrial plug.
Heavy-duty 32A 5-pin red industrial plug to 13A twin RCD socket extension lead with open IP66 weatherproof cover.
Full view of the 32A 5-pin to 13A 2-gang RCD step-down extension lead with the weatherproof double cover closed.
Front view of the BG Nexus Storm IP66-rated 2-gang outdoor RCD socket with active test and reset buttons.
Close-up of the BG Nexus Storm double RCD outdoor socket box with the see-through protective cover sealed shut.
Close-up of the secure cable gland and heavy-duty cable entry on the base of the IP66 RCD outdoor socket box.
View of the structural rear mounting box and knockout options for the BG Nexus RCD weatherproof housing.
High-durability Nexans Titanex 4mm² 3-core H07RN-F flexible black rubber industrial power cable.
Commercial 415V 32A 5-pin 3P+N+E red industrial three-phase male plug (PCE 025-6 variant).
Technical dimensions diagram showing measurements, diameter and layout details for the PCE 32A 5-pin industrial plug.

32A (5-Pin) to 13A 2 Gang RCD Weatherproof Socket - 4mm² Cable

Built in-house for maximum durability, all our 32A 5-pin RCD weatherproof extension leads are made to BS 7909 and supplied fully safety tested.

32A 5-pin (3P+N+E) 415V plug to IP66 outdoor RCD weatherproof 2-gang socket with tough and flexible 4mm² rubber cable. Suitable for temporary or permanent outdoor use if wall mounted.

Professionally configured for safe step-down applications from industrial three-phase supplies.

Choose between an IP44 splash-proof or IP67 waterproof plug.

For more product, lead times and returns information please see tabbed areas below.

Qty Discounts - applied when you add multiple items of the same length into the basket.

  • Buy 3 - 5 for 5%
  • Buy 6+ for 10%

Product Code: AH32513RDO / AH325W13RDO

Price Includes VAT

£0.00
From £54.30
£0.00
From £54.30
Earn 0 reward points
Choose an option from the list above...

In stock

Sorry! We're out of stock

The details

  • Product Information

    Assembled in-house to high standards, these heavy-duty RCD step-down leads provide critical safety for industrial power, suitable for commercial, workshop, and site applications.

    Key Features:

    • Premium Cable: Genuine Nexans Titanex 4mm² H07RN-F rubber cable for durability and minimal voltage drop.
    • RCD Safety Protection: Integrated BG 30mA Type A latching (passive) RCD cuts power within 40ms during earth faults.
    • Latching Mechanism: Passive design ensures automatic restart after power interruptions.
    • Weatherproof Power: Heavy-duty IP66 twin socket with a robust PCE 32A 5-pin (3P+N+E) 415V red plug.
    • Ready for Use: PAT tested and compliant with BS 7909 standards.

    Note: Safely splits 32A three-phase input to a single-phase 230V output.

  • Product Specification
    SpecificationDetails
    CableNexans Titanex 4mm² 3 Core H07RN-F Rubber
    IP44 Plug415V 32A 5Pin 3P+N+E IP44 Red Plug PCE 025-6
    IP67 Plug415V 32A 5Pin 3P+N+E IP67 Red Plug PCE 0252-6
    SocketBG WP22RCD Nexus Storm IP66 2-Gang 13A RCD Switched Socket (Type A Latching, 30mA, <40ms)
    TerminationsFerruled
    Voltage220-240V Output (From 415V Single Phase Draw)
    IP RatingIP66 (Socket) / IP44 or IP67 (Plug Options)
    Max Current13A Total Load
    Test StandardBS 7288 / BS 1363-2 / PAT & BS 7909 Compliant
    Asset Marking2 x 80mm Clear Heatshrink Sleeves
    Product CodeAH32513RDO / AH325W13RDO
  • Lead & Dispatch Times

    These 32A 5-pin to 13A 2 gang RCD weatherproof socket leads are built-to-order upon receipt of your order.

    Urgent Orders: Please contact us before ordering to confirm workshop capacity if your requirements are time-critical.

    Assembly Lead Times (By Quantity)

    Order QuantityEstimated Production Time
    1 to 3 UnitsDispatched on date shown in red header box at the top of the page.
    4 to 10 UnitsAssembled and ready to dispatch 1-3 working days after date shown in red header box.
    11 to 30 UnitsAssembled and ready to dispatch 2-5 working days after date shown in red header box.
    31+ UnitsAssembled and ready to dispatch 3-7 working days after date shown in red header box.
  • Returns

    Because these 32A 5-pin to 13A 2 gang RCD weatherproof socket leads are built-to-order, no returns, refunds, or exchanges are permitted once production has commenced.

    Please ensure that the length, voltage and configuration are suitable for your specific application before making a purchase.

    Need Help? If you require any further technical assistance or compatibility advice, please message our support team prior to purchasing to avoid incorrect orders.

    Frequently Asked Questions

    Can I change or cancel my order after payment?
    Cancellations or changes to cable length and configuration are only possible if our workshop has not yet commenced production on your order. Please contact our support team immediately via email or phone if you need to request a modification to your order.

    What happens if my custom cable arrives faulty or damaged?
    Every lead is fully safety-tested in our workshop before dispatch. However, if your extension lead arrives damaged in transit we will arrange a replacement item under our product guarantee. Please report any issues to us on the day of delivery.

    How do I make sure I am ordering the correct configuration?
    This specific lead features a 32A 5-pin (3P+N+E) 415V plug and converts to a 13A 2-gang RCD weatherproof socket with a premium 4mm² cable core. If you are unsure whether your power source or equipment matches these exact specifications, please take a clear photograph of your plugs/sockets and send them to us for verification before checkout.
